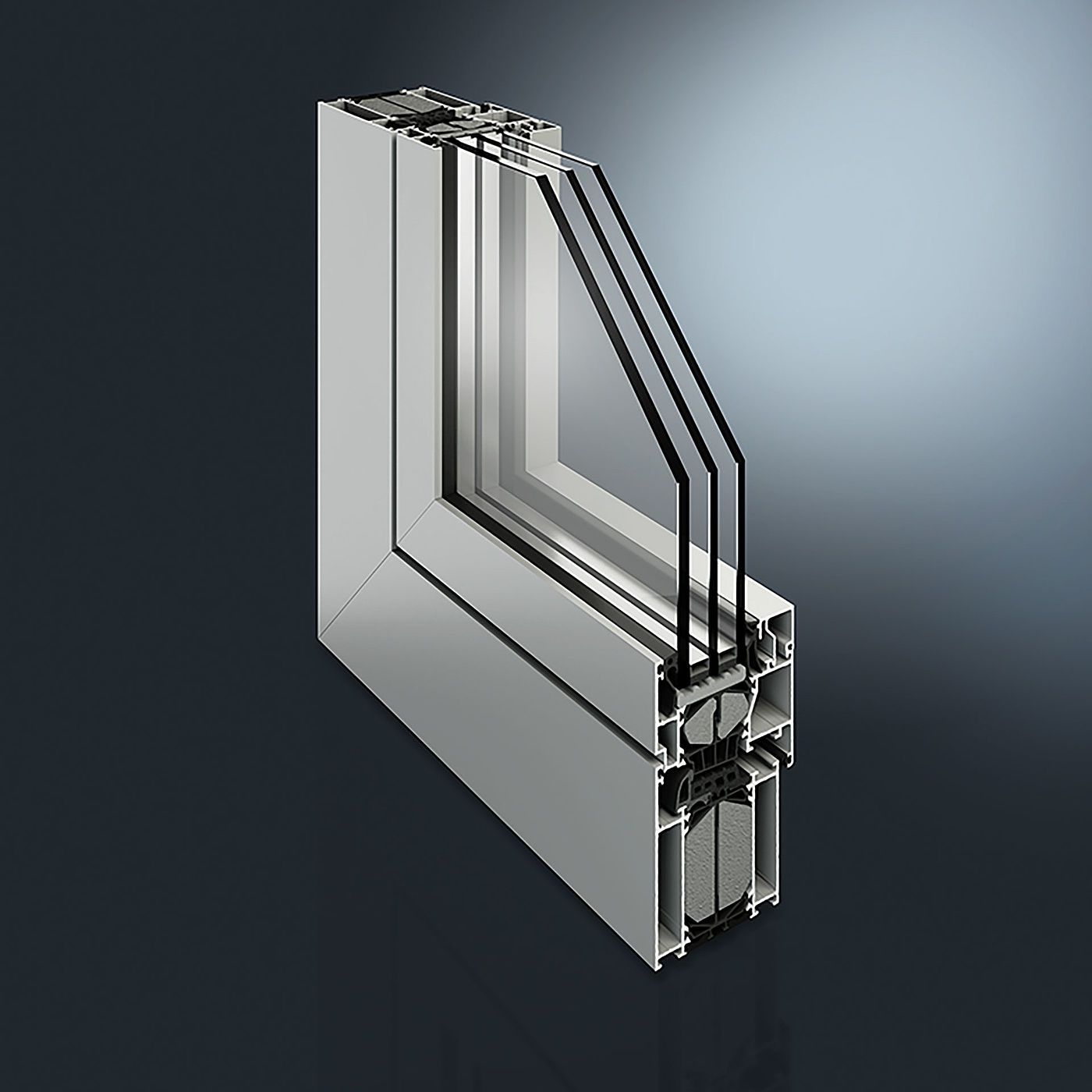

System Description:

Innovative and modern window system with construction depth of 80 mm. As with the proven GWD 070 window series, the modular system design and the common parts were systematically adjusted here. It can be adjusted to the user’s requirements from thermally insulated to highly thermally insulated level and also to passive house level with simple additions. Passive house viability in accordance with IFT directive WA-15/2, in combination with the required service ability

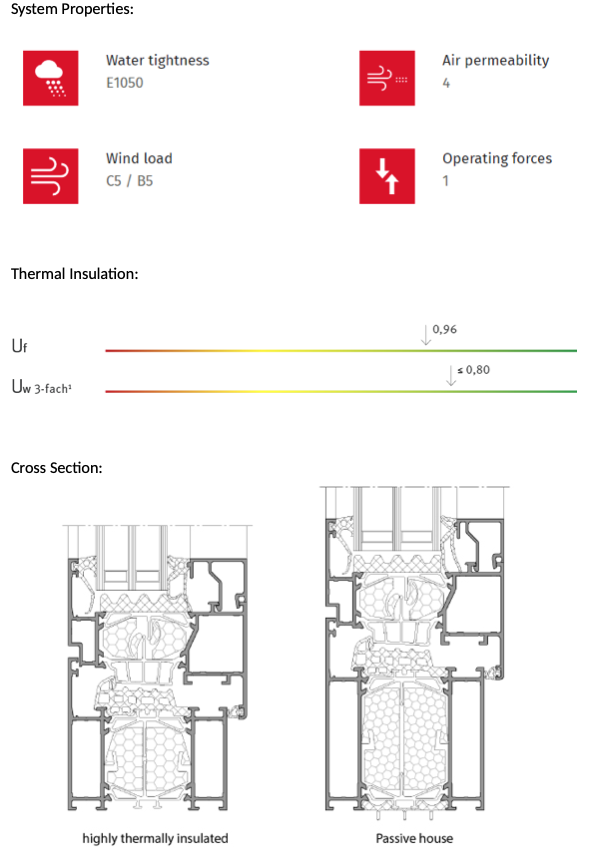

    *    Thermally insulated window series with peak value of Uf = 1.3 W/m2K.

    *    Highly thermally insulated premium window series with peak value of Uf = 1.0 W/m2K.

    *    Passive house window system with a peak value of Uf ≤ 0.8 W/m2K.

    *    5-chamber, coextruded hollow chamber central gasket, glass rebate insulation for im-proved thermal insulation.

    *    Thermal and structural high-end insulators in GUTtherm material technology.

    *    Euro groove for free choice of hardware.

    *    Surface-mounted fittings up to sash weights of 300 kg; concealed fittings up to 180 kg.

    *    Use of glass up to 65 mm in the sash, 55 mm in the fixed panel.

    *    Burglar resistance RC 1N, RC 2 and RC 3 in accordance with DIN EN 1627.
