System Description:

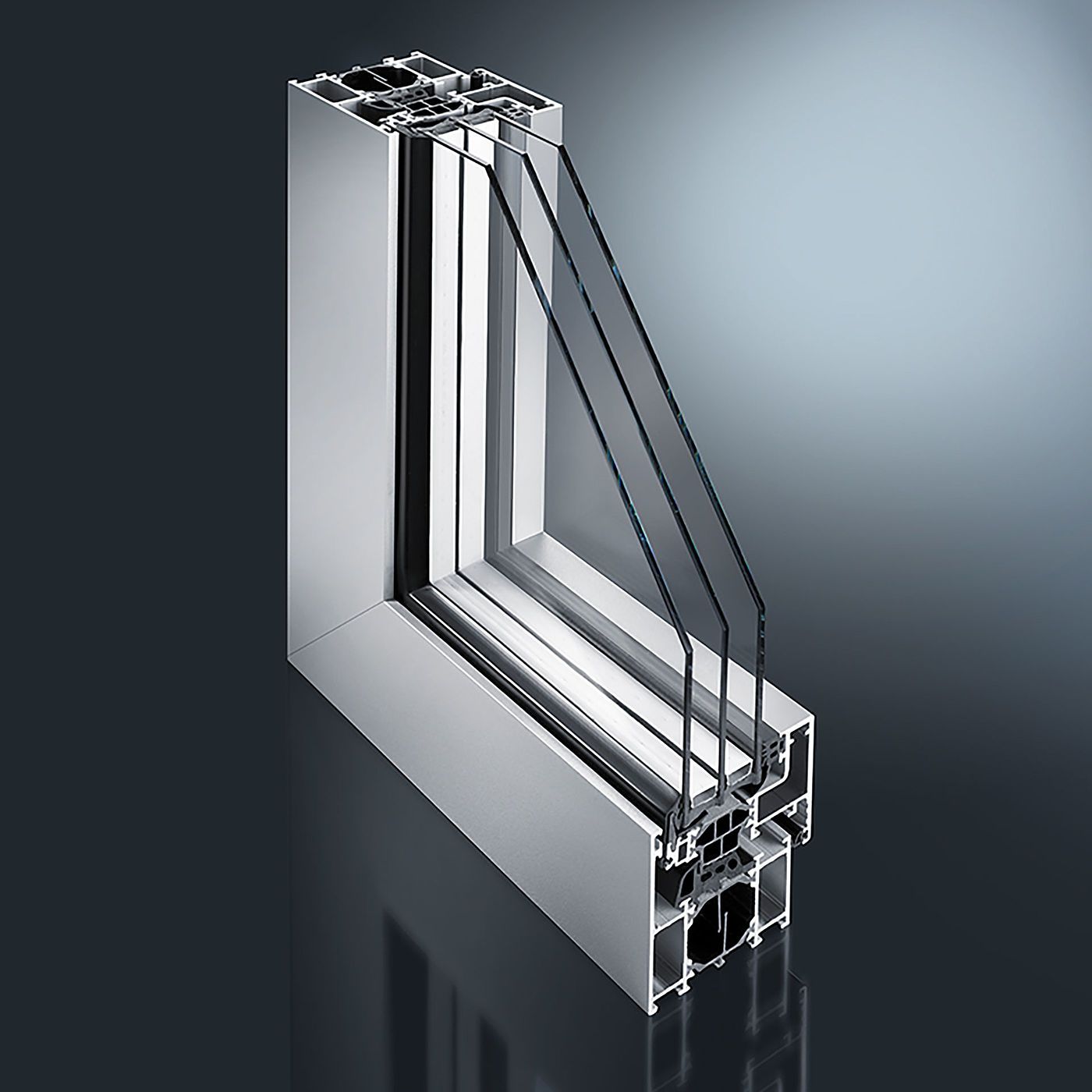

Reliable window series with a basic depth of 70 mm. Fulfils the highest demands on thermal and sound insulation. Through the development of a modular system construction kit, a large number of thermally insulated to highly thermally insulated constructions can be produced at a very economical price.

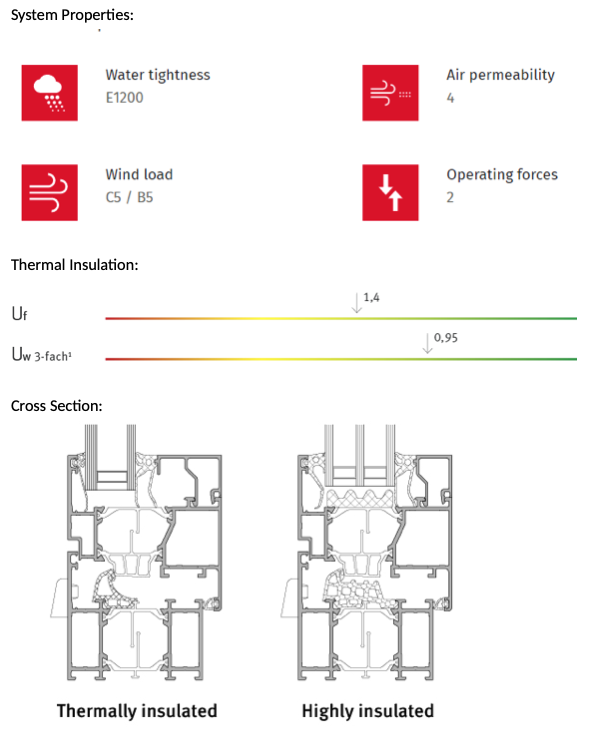

*    Standard windows thermally insulated with good insulation of Uf = 1,9 W/m2K. Thermally and structurally optimised Winglet insulators with high-strength PA 6.6 fiberglass technology

*    Highly thermally insulated premium window with peak value of Uf = 1.4 W/m2K. 4- chamber coextruded hollow chamber central gasket, glass rebate insulation inserts and 9mm thick, external glazing system gasket for improvement of frame thermal insulation

*    Symmetrical, stable structural design with identical corner and T-connectors.

*    Surface-mounted fittings up to sash weights of 300 kg; concealed fittings up to 180 kg.

*    Use of glass up to 60 mm in the sash, 50 mm in the fixed panel.

*    Sound isolation up to 47 dB (SSK 5).

*    Burglar resistance RC 1N, RC 2 and RC 3 in accordance with DIN EN 1627.

*    Euro groove for free choice of hardware.
