System Description:

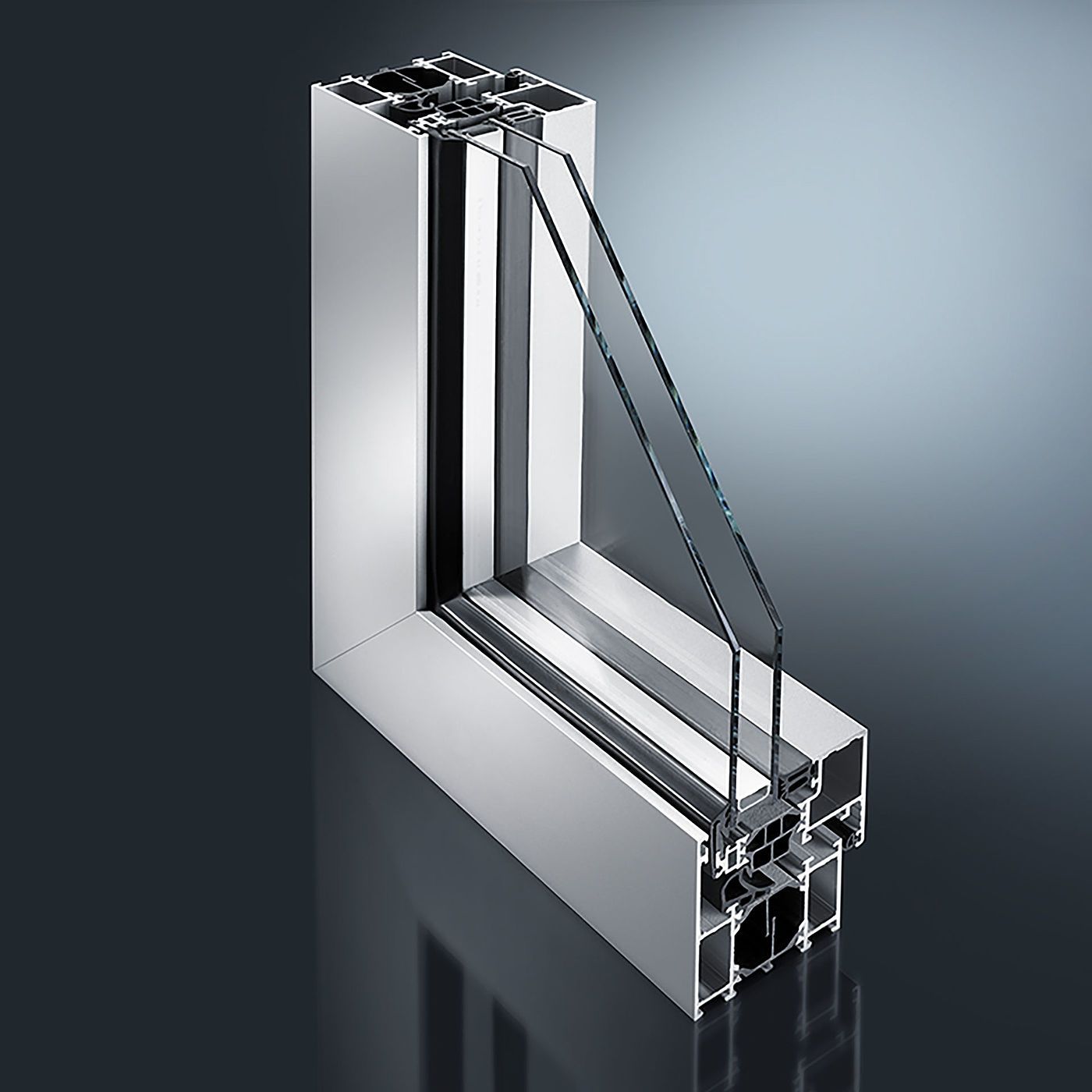

Proven window series with concealed sashes and a basic depth of 70 mm. Meets high requirements on thermal and sound insulation. By developing a modular system construction kit, it is possible to manufacture a wide range of insulated and even highly insulated element constructions in a favourable price-performance ratio.

    *    Standard windows thermally insulated with good insulation of Uf = 2.1 W/m2K with thermally and statically optimised winglet insulators in high-strength PA 6.6 glass fibre technology

    *    Premium highly insulated window with peak value of Uf = 1.7 W/m2K, 4-chamber coextruded hollow chamber central gasket, glass rebate insulation inserts and 9 mm thick, external glazing system gasket for improvement of frame thermal insulation

    *    Symmetrical, stable structural design with identical corner and T connectors.

    *    Surface mounted fittings up to sash weights of 300 kg; concealed fittings up to 180 kg.

    *    Face width from 71 mm for tilt & turn windows.

    *    Use of glass up to 46 mm in sash.

    *    Euro groove for free choice of hardware.

    *    Soundproofing up to 47 dB (SSK 5).

    *    Burglar resistance RC 1N, RC 2 and RC 3 in accordance with DIN EN 1627.
